4.16.10/15 Series

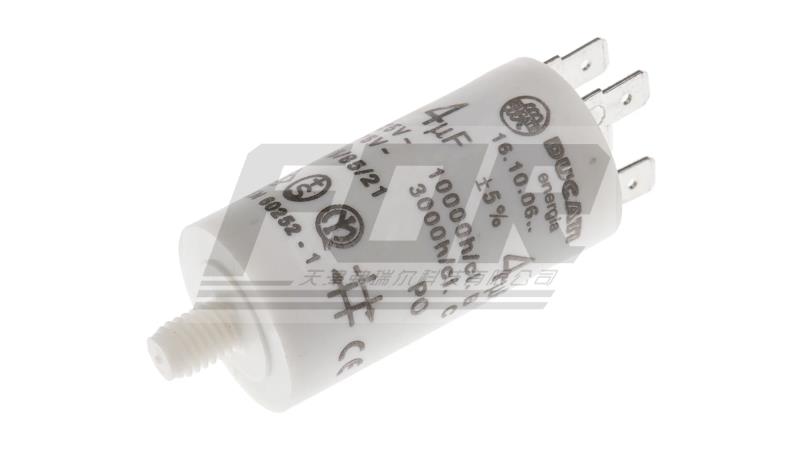

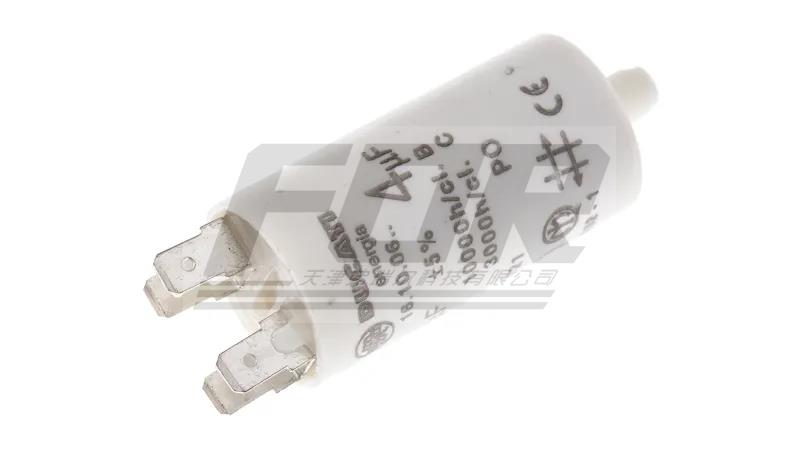

Ducati 4.16.10/15 series are snap-in (quick connect) Polypropylene film capacitors. They are an electric motor capacitor used to start and run. The case and cover feature a self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin. These 4.16.10 series film capacitors are supplied with the main international approvals (IMQ-VDE-UL-GOST). Operating temperature -25°C to +85°C

Features and benefits

Self-healing metallised polypropylene dielectric
Plastic case made of self-extinguishing material, grade V2 to UL 94
Stud mounting and termination via inch push-on receptacles

Applications

Motor control and drive

Note

Fixing nut not supplied.

Standards

VDE 560-8, CEI 33-3, SEV 1029

Standards

VDE 560-8; CEI 33-3; SEV 1029



Attribute	Value
Capacitance	4µF
Voltage	450V ac
Mounting Type	Stud Mount
Tolerance	±5%
Series	4.16.10
Height	55mm
Dimensions	28 (Dia.) x 55mm
Dielectric	Polypropylene
