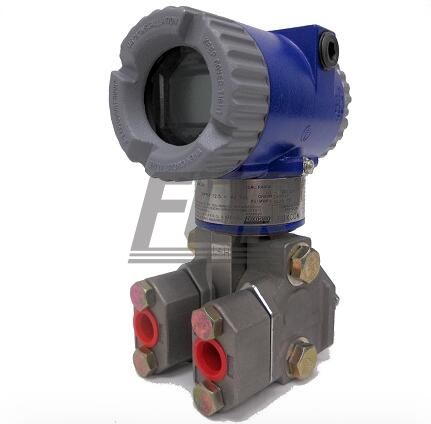

IDP10-T22A25D-M1L1 Foxboro IDP10 Pressure Transmitter

Model: IDP10 - I/A Series, Electronic d/p Cell Transmitter for Differential Pressure Measurement
Electronics Versions and Output Signal: -T - Intelligent; Digital, HART and 4 to 20 mA (Version -T)
Transmitter with Traditional Structure: 22
Covers: 316 ss
Sensor: 316L ss
Fill Fluid: Silicone
Span Limits (Differential Pressure Units): A¹kPa: 0.12 and 7.5
inH2O: 0.5 and 30
mbar: 1.2 and 75
Process Connector Type (Material Same as Process Cover Material)²: 2 - 1/2 NPT, Not with Structure Codes 78 or 79, or pressure seals
Conduit Connection and Housing Material: 5 - M20 Conduit Connection, Both Sides, Aluminium Housing (With Electrical Safety Codes E, D, M, and N only)
Electrical Safety: D - ATEX II 2 GD. EEx d IIC, Zone 1³
Optional Selections: -M1
Mounting Bracket Set⁴: Standard Style Painted Steel Bracket with Plated Steel Bolts (not available with LP1 structure)
-L1 - Digital Indicator, Pushbuttons, and Window Cover

NOTE:

Span Limit Code A is not available with pressure seals, expect for Sanitary Spud Seals Models PSSSR-.4 and PSSST-.4.
Select Code "0" if a pressure seal is specified. Otherwise select Code 1 through 7.
Cover lock provided as standard with Electrical Safety Codes D, B, G, and M.
Mounting sets not offered with direct connect (flange mount) seals.
