40NHG000B BUSSMANN Fuse 40A 500VAC 250VDC;

Product No.：202062423267
Online Inquiry

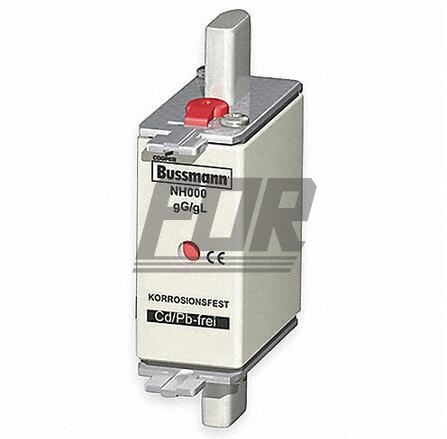

Bussmann NH Fuses Type gG/gL, Size 000

Bussmann NH fuses are square bodied industrial fuses that are suitable for a wide range of applications. Designed with a Steatite insulator and corrosion resistant aluminium end plates Bussmann NH fuses are ideal protection when used in conjunction with DIN rail fuse holders.

High breaking capacity
Dual Indication

Specifications

Attribute	Value
Fuse Standard	DIN 43620-1, DIN 43620-3, IEC 60269, VDE 0636
Fuse Size	000
Current Rating	40 A
Voltage Rating	500 V ac
High Rupture Capacity	Yes
Overall Length	78.5mm
Tag Width	6mm
Body Height	41mm
Body Width	21mm
Body Length	54mm
Application Category	GG - gL
Fuse Type	NH
