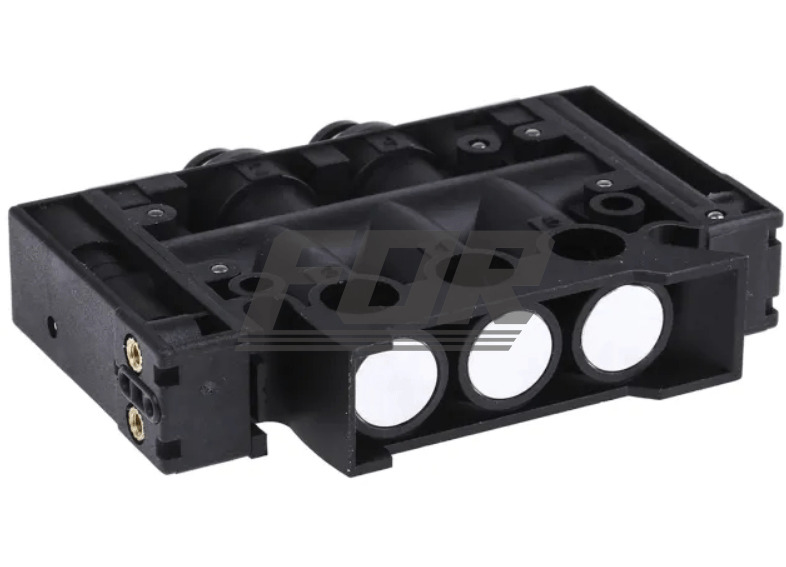

Parker PVL-C121619 Air Manifold Solenoid

Parker PVL-C121619 Air Manifold Solenoid

Product No.：202551892735
Online Inquiry

The PVL series is an air piloted stacking valve. The PVL valves can be configured as plugin or non-plugin. Functions are 5/2, 5/3. and dual 3/2. Electrical connections are 15 mm 3 pin DIN connector, or 25 pin Dsub. The air pilot port is 5/32" tube.

For Fluid Type:	Inert Gases
Maximum Operating Temperature:	140.0 °F, 60 °C
Minimum Operating Temperature:	5 °F, -15 °C
Maximum Operating Pressure:	150 psig
Function:	Dual 3-way & 4-way, Solenoid air operated
Valve Type:	4 Way
Number of Positions:	2, 3
Number of Ports:	5
Actuation Type:	Solenoid Air Operated
Mounting Type:	Manifold, Subbase
Port Size:	M5, 1/8", 1/4"
Port Type:	BSPP, NPT
Minimum Flow Rate:	0.17 Cv
Maximum Flow Rate:	1.2 Cv
Input Voltage:	12/24VDC, 120/240VAC
Electrical Connection:	35mm DIN
Specifications Met:	UL, NFC 79 300, IP65
Pressure Rating:	30-150 psig
Minimum Operating Pressure:	30, 45 psig
Operating Temperature:	-15 to +60 °C, +5 to +140 °F
Media:	Inert Gases
Lubricant:	Not reqd
Power Consumption:	1.2W, 1.6VA
Body Material:	Glass Filled Polyamide
Seal Material:	Polyurethane

The PVL series valve is an internal air piloted, inline, or stacking style valve. The PVL valves can be configured as plugin or non-plugin, solenoid or air pilot actuated. M5, 1/8, 1/4, or 3/8 NPT/BSPP/Tube ports are avalable. Available valve functions are:

    • 5/2, single and double solenoid / single and double air pilot
    • 5/3, double solenoid, all ports blocked or center exhaust
    • dual, 3/2, double solenoid, NC/NC

The electrical connection options are the non-plugin 15 mm 3 pin DIN connectors wired directly to each coil, or the 25 pin Dsub collective wiring option. The air piloted connection is 5/32" tube. The PVL series valves can be configured as inline, stacking, or with collective wiring. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool.

Markets
• General Industrial
• Automotive
• Factory Automation

Features/Benefits
• Can be configured as plugin or non-plugin, solenoid or air pilot actuated

Applications
• General Industrial
• Conveyance
• Packaging
• Assembly

DATASHET
