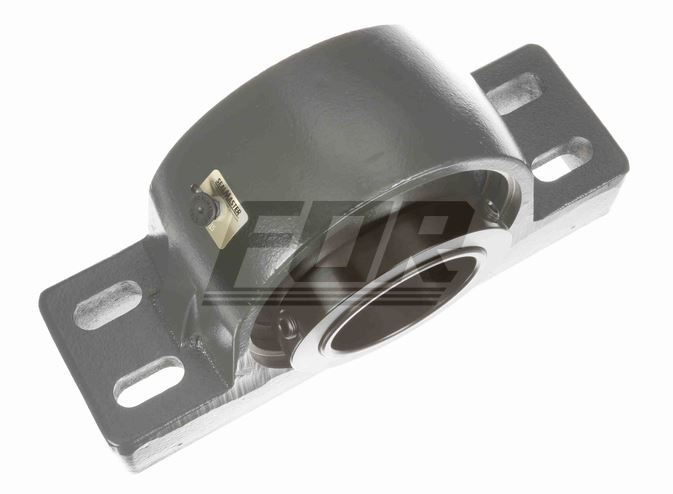

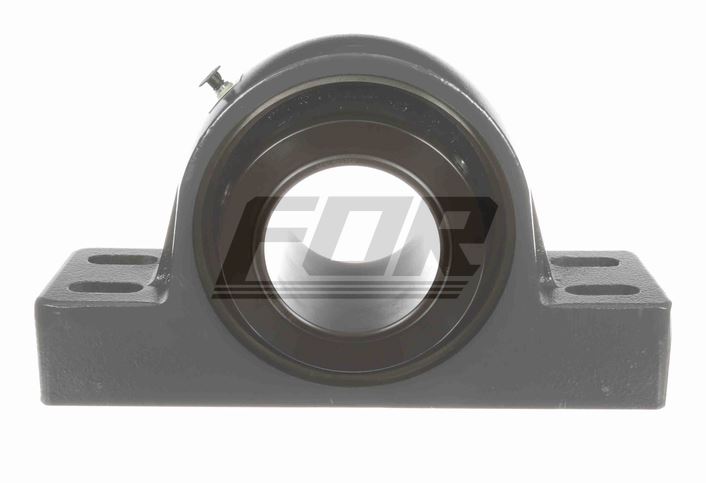

Link-Belt PB22463FH Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings

PB22463FH 3 15/16 PILLOWBLK RLR BRG

3-15/16" Mounted Spherical Roller Bearing, Cast Iron 4-Bolt Pillow Block, Single Setscrew Locking Collar, Clearance Seal

Product Specifications

Dimensions

Overall Width (in):	5.063 in	Overall Height (in):	8.5 in
Overall Length (in):	15.25 in	Base Width (in):	4.5 in
Foot Height (in):	2.625 in	Bore Size - Inch:	3.938 in
Base to Center Height (in):	4.25 in	Inner Race Length (in):	5.063 in
Bolt Center Max (in):	13 in	Bolt Center-to-Center Length (in):	12.5 in
Collar OD (in):	5.625 in	Bolt Center Min (in):	12 in
Bolt Center-to-Center Width (in):	2.25

Technical Specifications

Housing Material:	Cast Iron	Seal Type:	Labyrinth Seal
Options:	Non-Expansion	Housing Type:	Pillow Block, Four Bolt
Rolling Element:	Spherical Roller	Locking Type:	Single Setscrew Locking Collar
